Gitflow Part 1: Overview of Gitflow

Abstract

Welcome to part one of a two part series on GitFlow. When you're done reading part one, check out part two.

• Gitflow Part 1: Overview of Gitflow
• Gitflow Part 2: Step by step guide to Working on a feature

Intro

GitFlow is a basic git workflow created by Vincent Driessen and described in his blog post here. I've been using a modified version of GitFlow for a while now, and thought it would be a good thing to talk about on this blog.

In part one of this two-part series, I'm going to describe GitFlow and talk about how it fits into a team's development lifecycle. In part two I'll discuss working on a new feature, and give a step-by-step breakdown of what commands to use when working on a new feature.

Disclaimer

GitFlow isn't for everyone. It works best when your deployment cycle is based around releases. If your team deploys to production every day or several times a day, GitFlow may be impractical. In this case, github flow might be a better, more lightweight alternative.

GitFlow Overview

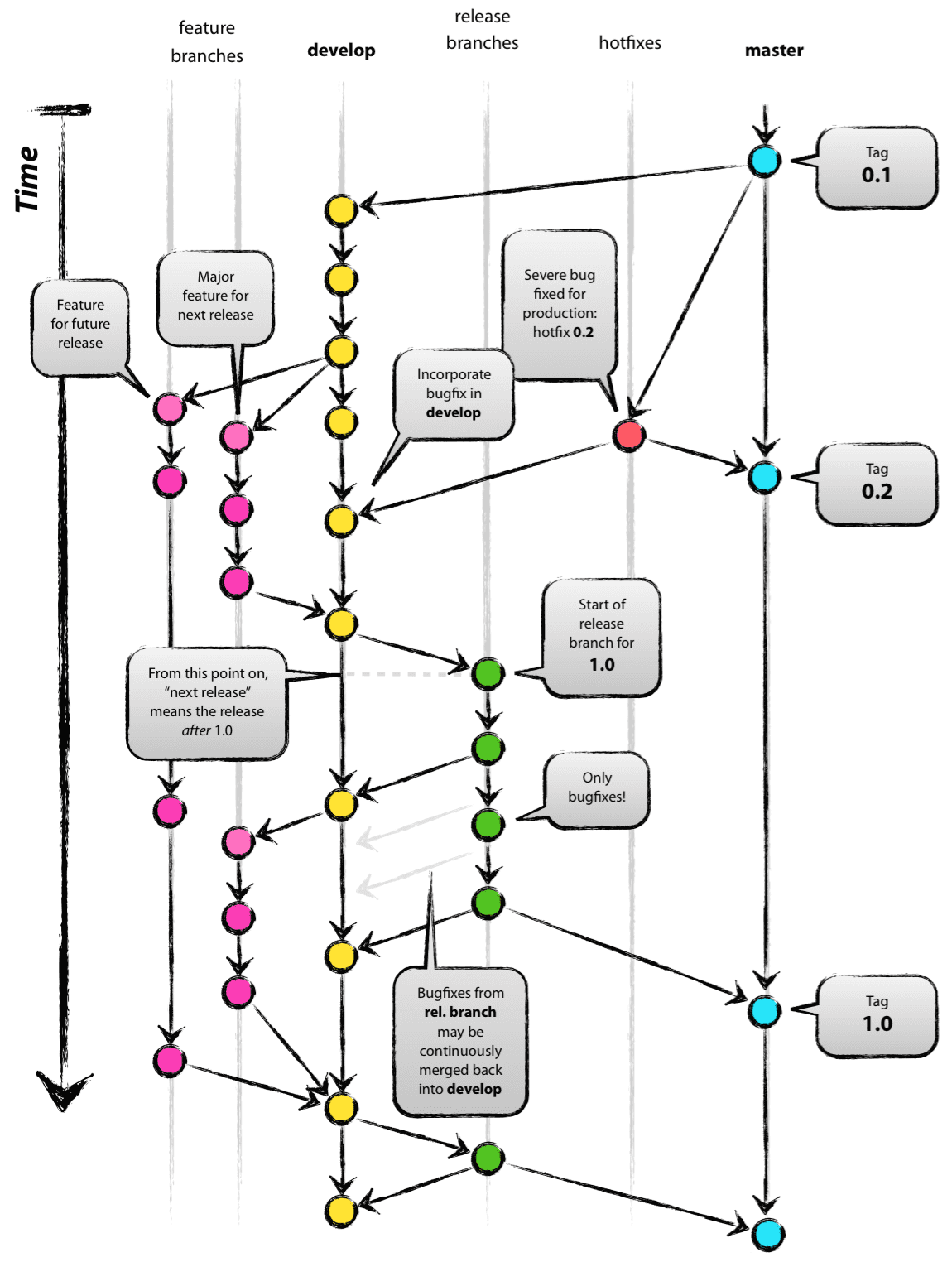

Fig. 1: Image taken from here.

Development lifecycle

The basic GitFlow is outlined in Fig. 1. GitFlow assumes that your deployment lifecycle is like the following:

• Work is divided into sprints
• During a sprint, developers will work on a handful of features
• When all of the sprint's features are finished, they will be packaged into a release
• That release is then deployed to production

GitFlow helps to accomplish this by having designated branches that correspond to the different stages of this lifecycle.

Branches

Each repo should have two persistent branches which live forever: develop and master.

• master contains the code for the release which is currently deployed to production. It should never contain anything which is not released. Anything in master, at any given time, is working production code, and every commit to master is a new release.
• develop contains code for the next release. During a sprint, new features are added to develop until the sprint ends.

In addition to develop and master, there are several short-lived branches which are created for a purpose and then deleted once that purpose is served:

• Feature branches are used to work on a new feature. They are forked off of develop and then merged back into develop and deleted when work on the feature is complete.
• Release branches contain all the new features which will be deployed to production in a release. A release branch is basically a bunch of features which will be merged into master at the same time. When a sprint ends, a release branch is forked from develop and then merged back into master and develop.
• A hotfix is a change that needs to be made immediately. They differ from normal bug fixes in that they can't wait for the next release to be deployed to production. A hotfix branch is forked from master and then merged back into develop and master.

Starting a project

If you're starting a new project from scratch, you can create a repository for your project and then clone it to your local. Then create the develop branch off of master, and push it to the remote:

git clone <repo address> /path/on/local
cd /path/on/local
git checkout -b develop
# Set -u (upstream) so that git remembers what remote to push to on this branch
git push -u origin head

Working on a feature

To work on a new feature, fork a feature branch off of develop, as shown in Fig. 1. Once all coding and testing are done, you can merge the feature branch back into develop.

The specific commands for how to work on a feature branch and merge it back into develop are described in part two of this series.

Releasing features

When you are finished working on all of the features for a release, cut a new release branch off of develop. A good way to name releases is with semantic versioning:

• MAJOR version when you make incompatible API changes,
• MINOR version when you add functionality in a backwards compatible manner, and
• PATCH version when you make backwards compatible bug fixes.

And a good naming convention for release branches is release/{release number}. So, if you are releasing version 1.2.3, you can fork a release branch off of develop:

git checkout develop
git pull
git checkout -b release/1.2.3

Note

As shown in Fig. 1, sometimes after creating a new release, you might notice a bug that needs to be fixed before merging the release branch. In this case, you can fix the bug with a new commit to the release branch, as shown in the diagram.

Then, to actually release the release, merge it into master and develop using pull requests (PRs)¹: create one PR from release/1.2.3 into master and create a second PR from release/1.2.3 into develop.

Once these PRs are merged, you can then tag the commits in master with the version number, and then push the tag to the remote:

git checkout master
git pull
git tag 1.2.3
git push origin 1.2.3

Making a hotfix

To make a hotfix, fork a branch off of master and then merge it back into develop and master, as shown in Fig. 1.

Since hotfixes are ultimately merged back into master, they are also new releases (since every commit to master is a new release). Therefore, like release branches, hotfixes should also have a release number.

Further, because hotfixes are generally small changes, the release version number for a hotfix should usually just increment the patch number of the version which is currently in master. If the change is big enough to increment the major or minor version number, it probably shouldn't be a hotfix.

Hotfix branches should be named with the naming convention: hotfix/{release-number}. So, if the current version released in master is version 1.2.3, your hotfix should be version 1.2.4, and the branch should be named hotfix/1.2.4.

Once the hotfix is completed, follow the same steps for releasing a new release: merge the hotfix branch into both develop and master with two PRs, and then tag the commits with the new release number.

Conclusion

The above was an overview of my take on GitFlow and how it incorporates into a full development lifecycle. This is not the only way to do GitFlow; in fact, I've made a few changes from Vincent Driessen's original post on GitFlow.

GitFlow is more of a general workflow and you should feel free to tweak it to fit your team's needs.

Note

Now that you've finished part one of this series, take a look at part two.

---

1. A pull request is a way to submit code changes for review and request that they be merged into a branch. For more info, see here. ↩
